Tripod barriers can be used for access control and make life easier for reception
staff at entrances to office and administrative buildings, industrial installations,
banks, authorities and many other places. They are quick, reliable and easy to use.
Our tried-and-tested control technology regulates the flow of people with ease,
even during the busiest periods of the day. Our tripod barriers are compatible with
all types of ID readers.
We offer a full range of turnstiles solutions to regulate and control the flow of
people into and out of buildings. We recognize the need for different types of solutions,
depending on the level of security and freedom of movement required.
In areas where there is a large flow of people, indoor Tripod Turnstiles, Entrance
Gates or Speed Gates provide discreet security which allows authorized individuals
to pass through quickly and unhindered. Entry can be granted swiftly using a ticket,
token or card. For higher level of security, Full-Height Turnstiles and Security
Revolving Doors are more appropriate. Combined with electronic access control –
such as a code, swipe card or biometric identification – our full-height entrances
provide you with the means to keep unauthorized individuals out.
'P' Gates
'P' type entrance gates are designed to guide and control the flow of people with
disability, allowing wheelchair and in retails trolley access. 'P' includes mechanic
and motorized swing gates, alarm and sensor detection systems, barriers and posts.
Speed Gates
Speed Gates combine elegant and sophisticated design with the latest technology.
These are suitable for areas where there is a large flow of people. By integrating
access control devices, the Speed Gates provide a higher level of security and higher
capacity in one solution that effectively prevents unauthorized passage while allowing
a continuous flow of individuals.
Revolving Doors
Revolving Doors provide an elegant and extremely secure solution. Ideal for high-profile
buildings requiring secure entrance, the Revolving Doors prevent tailgating and
piggybacking and can be fitted with a range of detection systems to achieve the
appropriate level of security.
Full Height Turnstiles
Full-Height Turnstiles are available anywhere where there is a need of a high degree
of security without manned monitoring. Our range of Full-Height Turnstiles consist
of a series of mechanical perimeter designs which is further complemented with a
higher aesthetic and more suited to internal or semi-external applications.
Half Height Turnstiles (Swing Gates) & Tripod Gate
Half Height Turnstiles are designed to combine smooth operation with uncompromised
security. Easy to use for visitors, allow simple entry into a building. Available
in a wide range of finishes, our Entrance Gates are ideal for buildings where style
and design is important.

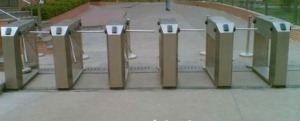

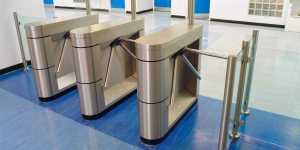

Tripod Turnstile is very simple, reliable, and economical crowd-organizing entrance
gate system. Tripod turnstile is a three-armed rotating security gate. Tripod Turnstile
is used wherever the controlled entrance and exit of crowds of people is needed.
Among all turnstiles, the tripod turnstile is the most tried and true, reliable
turnstile, and has been around for many decades. The operation of tripod turnstiles
is simple and practical. The primary working part, which gives Tripod Turnstile
its name, is the three angular arms you must turn while walking through the gate.
As you approach the Tripod Turnstile, you must push the uppermost arm to move through.
The 'axle' of these three arms is set at a 45% angle to the floor, so that the uppermost
tripod arm is at a horizontal level and the two lower arms are tucked out of the
way of your legs. As you walk through the tripod turnstile the upper arm you are
pushing rotates downward and out of your way so you can walk through, and the next
arm rotates up and out behind you to stop in the upper, horizontal position. The
three arms of Tripod Turnstile are spaced with enough room to allow one person to
walk through. In Tripod Turnstile three numbers of arms has become widely used due
to its ideal spacing; with two arms, more than one person can go through, and with
four arms the space is too small for even one person to walk through without a little
squeeze. Three is perfect, and the tripod turnstile allows an easy passage of quick-
moving crowds to move freely through the turnstile when it is unlocked.
In most models have the option of being set to turn in only one direction at a time,
or to be open in both directions. In this the turning arms can be set to turn freely,
or to be activated electronically, by push button, or by an access card system.
Application
Tripod Turnstile is used indoors or outdoors. In areas where crowd entrance and
exit should be controlled and organized and not move through absolutely freely.
- Subway
- Metro Systems
- Stadiums
- Airports
- Stores
- Large venues.
Most models offer either a pedestal mount so they can stand on a floor. A wall mount
it is attached to a corridor wall or spacing wall. The pedestal mount It is usually
used for exterior installations and for large interior entrance areas. The wall
mount It is used for corridor walls, spacing walls, and narrow entrances. The Tripod
arms and the mounting and casework are usually made of stainless steel, so they
can withstand rough treatment by weather and human usage without rusting or otherwise
corroding.
|
